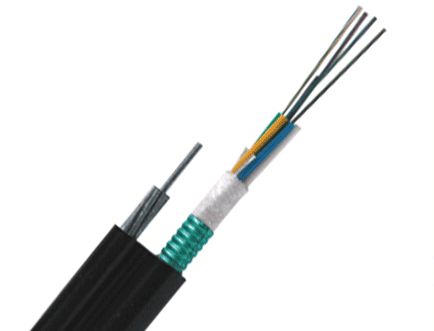

48 Core GYTC8S Self-Supporting Fiber Optic Cable for Aerial Outdoor Network Installation
Επικοινωνήστε μαζί μου για δωρεάν δείγματα και κουπόνια.
ΤιAPP:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
Αν έχετε οποιοδήποτε πρόβλημα, παρέχουμε 24ωρη ηλεκτρονική βοήθεια.
xΛεπτομέρειες
| Όνομα μοντέλου | Gytc8s | Θερμοκρασία εγκατάστασης | -30°C σε +60°C |
|---|---|---|---|
| Συσκευασία | τύμπανο 2-4km/wooden | Χρόνος ζωής | 25-30 έτη |
| Εγκατάσταση | Αυτοεφοδιαστικό αεροδρόμιο | Φάσμα ινών | 2-144 πυρήνες |
| Μπουφάν | Πολυαιθυλένιο (PE) | Θωρακισμένος | Ταινία χάλυβα θωρακισμένη |
| Εργοστάσιο | Ναί | Μοντέλο ινών | G652D G657A1 G657A2 |
| Επισημαίνω | 48 core self-supporting fiber optic cable,aerial outdoor fiber optic cable,GYTC8S outdoor network cable |
||
Μπορείτε να σημειώσετε τα προϊόντα που χρειάζεστε και να επικοινωνήσετε μαζί μας στον πίνακα μηνυμάτων.
| Loose Tube |
|---|
Περιγραφή προϊόντων
Product Description:
The 48-core GYTC8S optical cable is a self-supporting outdoor fiber cable specifically designed for aerial installations in telecom, CCTV, and broadband projects.

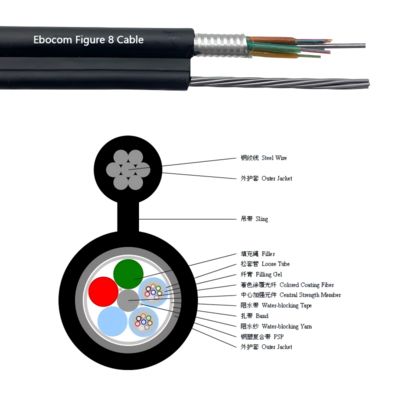

It combines a central loose-tube optical core with corrugated steel tape armor and a built-in messenger wire, forming the classic figure-8 (8-shape) structure. This design provides superior mechanical strength, weather resistance, and installation convenience for long-distance spans.
The 48 fibers are housed in multiple color-coded loose tubes, each filled with water-blocking gel for maximum protection against moisture. The corrugated steel tape offers excellent compression and rodent resistance, while the PE outer sheath ensures durability under UV and temperature variations.
The messenger wire section — usually a galvanized steel strand — supports the cable’s weight during aerial deployment, eliminating the need for separate suspension hardware.
This cable is widely used in FTTH backbone lines, municipal projects, rural broadband networks, and industrial communication systems that require a reliable and cost-effective aerial solution.
Main Features:
48-core high-capacity design — Suitable for large-scale backbone or access networks.
Integrated messenger wire — Self-supporting and easy to install on poles.
Corrugated steel tape armor — Strong protection against mechanical impact and rodent bites.
Water-blocking system — Prevents longitudinal water penetration.
Excellent tensile strength — Ideal for aerial spans from 50m to 500m.
UV-resistant PE sheath — Long-lasting outdoor durability.
Customizable structure — Optional messenger wire types and sheath colors available.
Technical Specifications:
| Item | Description |
|---|---|
| Cable Type | GYTC8S Self-Supporting Outdoor Fiber Optic Cable |
| Fiber Count | 48 cores |
| Fiber Type | Single-mode (G.652D / G.657A1) or Multi-mode (OM3 / OM4 optional) |
| Cable Structure | Figure-8 design with integrated messenger wire |
| Messenger Wire | Galvanized steel wire or 7-strand steel cable |
| Armoring Layer | Corrugated steel tape |
| Sheath Material | Black PE |
| Installation Method | Aerial, self-supporting |
| Operation Temperature | -40°C ~ +70°C |
| Span Distance | Typically up to 200 meters |
| Moisture Protection | Water-blocking gel + PSP armor |
Applications:
Long-distance aerial transmission lines
FTTH and FTTB backbone network construction
CCTV and monitoring systems
Industrial communication networks
Rural and suburban telecom infrastructure
Ebocom Advantage:
As a leading optical cable manufacturer, Ebocom offers:
Professional production lines for both armored and non-armored 8-figure cables
12+ years of manufacturing experience and strict ISO quality control
Flexible OEM/ODM services — fiber count, sheath color, printing, and packaging customizable
Stable delivery capacity — up to 100 km/day production capability
Reliable performance and competitive prices trusted by clients worldwide
