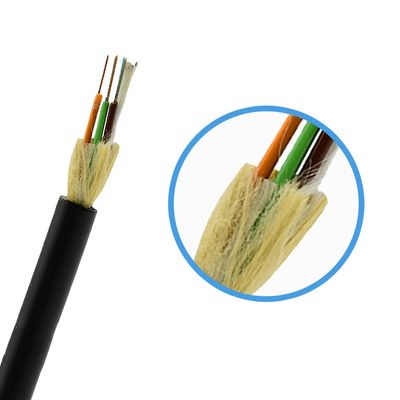

All Dielectric Self Supporting Fiber Optic Cable 48 96 Core Span100m SJ For Network Construction
| Τόπος καταγωγής | Shandong, Κίνα |
|---|---|
| Μάρκα | OEM |
| Πιστοποίηση | ISO TLC |
| Αριθμό μοντέλου | ΑΔΣΣ-48Β1.3 |
| Ποσότητα παραγγελίας min | 3000 μέτρα |
| Τιμή | EXW $0.3/M |
| Συσκευασία λεπτομέρειες | 12. Το μέγεθος του τύμπανου μπορεί να σχεδιαστεί, οι λεπτομέρειες θα υπολογιστούν για να είναι κατάλ |
| Χρόνος παράδοσης | 5-8 ημέρες |
| Όροι πληρωμής | T/T, L/C |
| Δυνατότητα προσφοράς | 20 KMS/ημέρα |
Επικοινωνήστε μαζί μου για δωρεάν δείγματα και κουπόνια.
ΤιAPP:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
Αν έχετε οποιοδήποτε πρόβλημα, παρέχουμε 24ωρη ηλεκτρονική βοήθεια.
xΛεπτομέρειες
| Τύπος ίνας | G652D/G657A1 A2 | Αρίθμηση ινών | 2-288 πυρήνας |
|---|---|---|---|
| Μέλος δύναμης | FRP | Σακάκι | ΡΕ |
| σακάκι | Μαύρος | Μάρκα | ΚΑΕ |
| Επισημαίνω | ADSS fiber optic cable 96 core,dielectric fiber optic cable 100m span,self-supporting fiber cable network construction |
||
Περιγραφή προϊόντων
Description

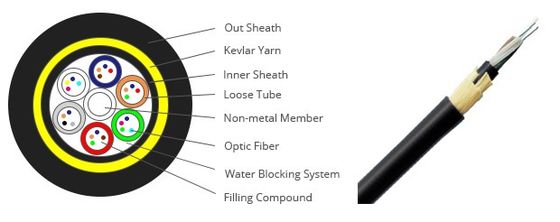

ADSS (All-Dielectric Self-Supporting) cable is a self-supporting aerial fiber optic cable designed for aerial installation and deployment in a variety of outdoor applications. This article provides a comprehensive overview of the definition, structure, advantages, and applications of ADSS cable.
Features
- --Multi-strand loose tube design ensures the cable remains mechanically strain-free under specific load conditions.
-Double-jacket design is suitable for medium-to-long span applications and moderate to severe snow, ice, and wind loads.
-No metal or conductive parts, allowing live installation (subject to local regulations).
-Can be used for both ground and phase conductors.
-Torsionally balanced aramid yarn strength elements provide a stable cable design.
-UV-resistant polyethylene jacket compatible with accessories.
-OEM extra-long spans available.
ApplicationS
Ideal for communications with power companies, telecommunications companies, and private network groups.
Designed for installation on distribution and transmission lines.
Can be installed close to conductors (where safety is a concern).
Suitable for applications where the need for power outages is minimized.
Physical Parameters
| Span(m) | Ice+Wind:0mm+35m/sec | Ice+Wind:12mm+30m/sec | ||||||
|---|---|---|---|---|---|---|---|---|
| Cable O.D.(mm/in) | Cable Weight (kg/km)/(lb/kft) | Max.Working Tension(N/lb) | Max .Sag(%) | Cable O.D.(mm/in) | Cable Weight (kg/km)/(lb/kft) | Max.Working Tension(N/lb) | Max .Sag(%) | |
| 100 | 13.9/5.472 | 152/102.01 | 7578/1704 | 2 | 13.8/0.543 | 150.0/100.67 | 6621/1489 | 2 |
| 200 | 14.3/0.562 | 161/108.05 | 10430/2346 | 3 | 14.1/0.555 | 157.0/105.37 | 9000/2024 | 3 |
| 400 | 15.9/0.625 | 199/133.56 | 23221/5223 | 3 | 15.4/0.606 | 187.0/125.50 | 19225/4331 | 3 |
| 500 | 16.7/0.657 | 220/147.65 | 30590/6881 | 3 | 16.1/0.633 | 204.0/136.91 | 24885/5598 | 3 |
| 600 | 16.3/0.641 | 209/140.27 | 26952/6063 | 4 | 15.7/0.618 | 196.0/131.54 | 22154/4983 | 4 |
| 800 | 16.5/0.649 | 216/144.97 | 29452/6625 | 5 | 15.9/0.625 | 201.0/134.90 | 24042/5408 | 6 |
| 1000 | 16.7/0.657 | 221/148.32 | 31271/7034 | 6 | 16.1/0.633 | 204.0/136.91 | 24407/5490 | 6 |
