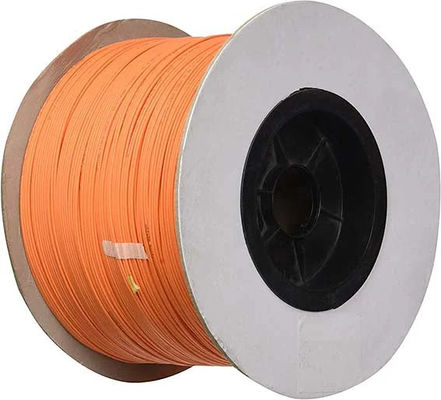

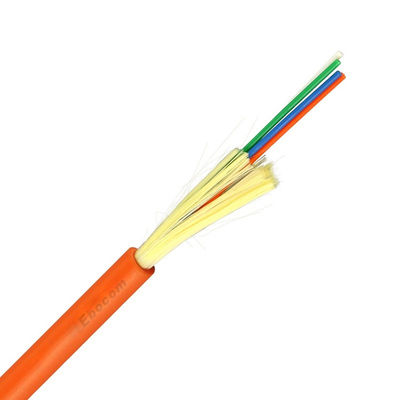

Indoor Optic Cable 12 24core Multimode OM1 OM2 OM3 OM4 Distribution Use

Indoor Optic Cable 12 24core Multimode OM1 OM2 OM3 OM4 Distribution Use
Τόπος καταγωγής:Σάντονγκ, Κίνα
Επωνυμία Μάρκας:EBOCOM
Πιστοποίηση:ISO TLC
Αριθμός μοντέλου:Επικαιροποιημένα συστήματα
Ελάχιστη ποσότητα παραγγελίας:2000M
Τιμή:EXW ≥2000m $0.16/M ≥5000m $0.14/M
Τυπική συσκευασία:12. Το μέγεθος του τύμπανου μπορεί να σχεδιαστεί, οι λεπτομέρειες θα υπολογιστούν για να είναι κατάλ
Χρόνος Παράδοσης:5-8 ημέρες
Όροι πληρωμής:T/T
Δυνατότητα Προμήθειας:5000 KMS/ημέρα
Λεπτομέρειες για το προϊόν
Επισημαίνω:

Multimode Indoor Optic Cable

,

OM1 Indoor Optic Cable

,

Distribution Indoor Optic Cable

Product Name: ΓΓΠΕΔ/ΓΓΠΕΔ
Jacket: PVC το /LSZH
Strength Member: Υφάσματα από αραμίδιο
Fiber: Μοναδικός τρόπος/πολλαπλός τρόπος
Brand: Ebocom ή OEM
Περιγραφή του προϊόντος
Λεπτομερείς προδιαγραφές και χαρακτηριστικά

Description



Indoor optical cables are a high-speed data transmission medium used to connect devices within buildings or data centers. They consist of optical fibers encased in protective sheaths and are designed for data transmission over relatively short distances. When optical cables are used indoors, safety and practicality are the main considerations. Therefore, optical cables for indoor use should be free of metals, halogens, be highly flexible, lightweight, and feature a completely dry design.
In recent years, indoor optical cables have become an important component of modern communication networks, as they can provide fast and reliable connections for enterprises, families and other organizations. Whether you are building a new data center, upgrading telecommunications infrastructure, or simply hoping to improve the speed and reliability of your internet connection, indoor optical cables can offer powerful solutions to meet your needs.



Indoor Optic Cable 12 24core Multimode OM1 OM2 OM3 OM4 Distribution Use 0

Applications

Mainly used for indoor wiring and connections between various indoor communication equipment, between equipment and instruments, and between instruments.



Mechanical Specifications

Cable Model Outer Diameter



(mm)

Weight



(kg/km)

Tensile Strength(N) Crush Resistance(N/100mm) Bending Radius Jacket Thickness(mm)
Long term Short term Long term Short term Dynamic Static
GJFJV-2F 3.6±0.2 12.5 180 440 300 1000 20D 10D 0.45±0.05
GJFJV-4F 4.7±0.2 17.6 180 440 300 1000 20D 10D 0.8±0.1
GJFJV-6F 5.2±0.2 22.8 180 440 300 1000 20D 10D 0.9±0.1
GJFJV-8F 5.8±0.2 26.7 180 440 300 1000 20D 10D 0.9±0.1
GJFJV-12F 6.3±0.2 32.7 180 440 300 1000 20D 10D 0.9±0.1
GJFJV-24F 8.0±0.2 53 200 660 300 1000 20D 10D 1.0±0.1
